ZUBAIR AHMED. Case study 02 · Object detection
All work

Object detection · micro-targets

Aerator Detection & On/Off Classification

A YOLOv8 detector tuned for micro-targets that locates individual pond aerators and classifies whether each one is running, at 78% mAP.

Task
Detection +
state classification
Model
YOLOv8
micro-target tuned
Head
P3 — stride 8
highest spatial resolution
Data
Hand-annotated
satellite imagery
Result
78% mAP

The problem

The task is to detect aerators in satellite imagery and classify each one as ON or OFF. That is hard for three compounding reasons: aerators occupy only a few pixels, they sit against low-contrast water with almost no edge to key on, and varying surface reflections change their appearance from scene to scene. Both the detection and the state classification suffer.

Aerator state matters operationally. Aeration is what keeps dissolved oxygen in a stocked pond survivable, so knowing which units are running — across a whole farm cluster, without visiting it — is a direct read on how the site is being managed.

What I built

  • A YOLOv8 detector specialised for micro-target detection that both localises aerators and assigns each one an on/off state, reaching 78% mAP.
  • A detection architecture driven from the P3 head — the stride-8, highest-spatial-resolution output — since targets this small carry no usable signal at the coarser P4 and P5 scales.
  • An annotated satellite dataset built for training the model.
Diagram of the YOLOv8 detection head configuration used for micro-target detection
Fig. 01Detection head configuration. Small targets are resolved at the finest stride available; the coarser pyramid levels contribute nothing at this object size.

Why the head choice is the whole problem

A standard detection pyramid distributes objects across scales — small objects to the fine head, large objects to the coarse ones. An aerator in satellite imagery is small enough that by the time the feature map has been downsampled to P4 or P5, the target has been pooled away entirely. Detection therefore has to be driven from the finest available stride, and the rest of the architecture follows from that constraint rather than from a default configuration.

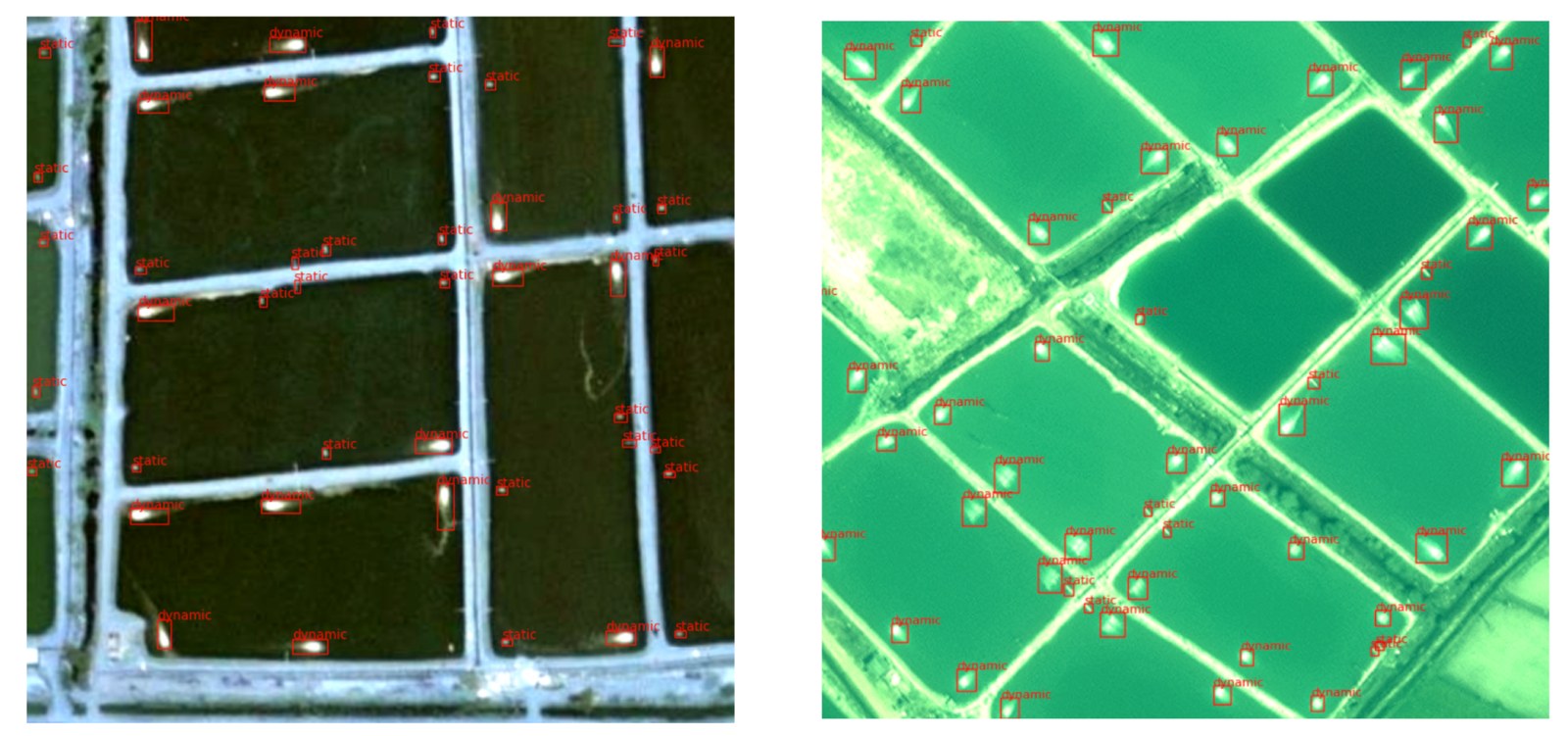

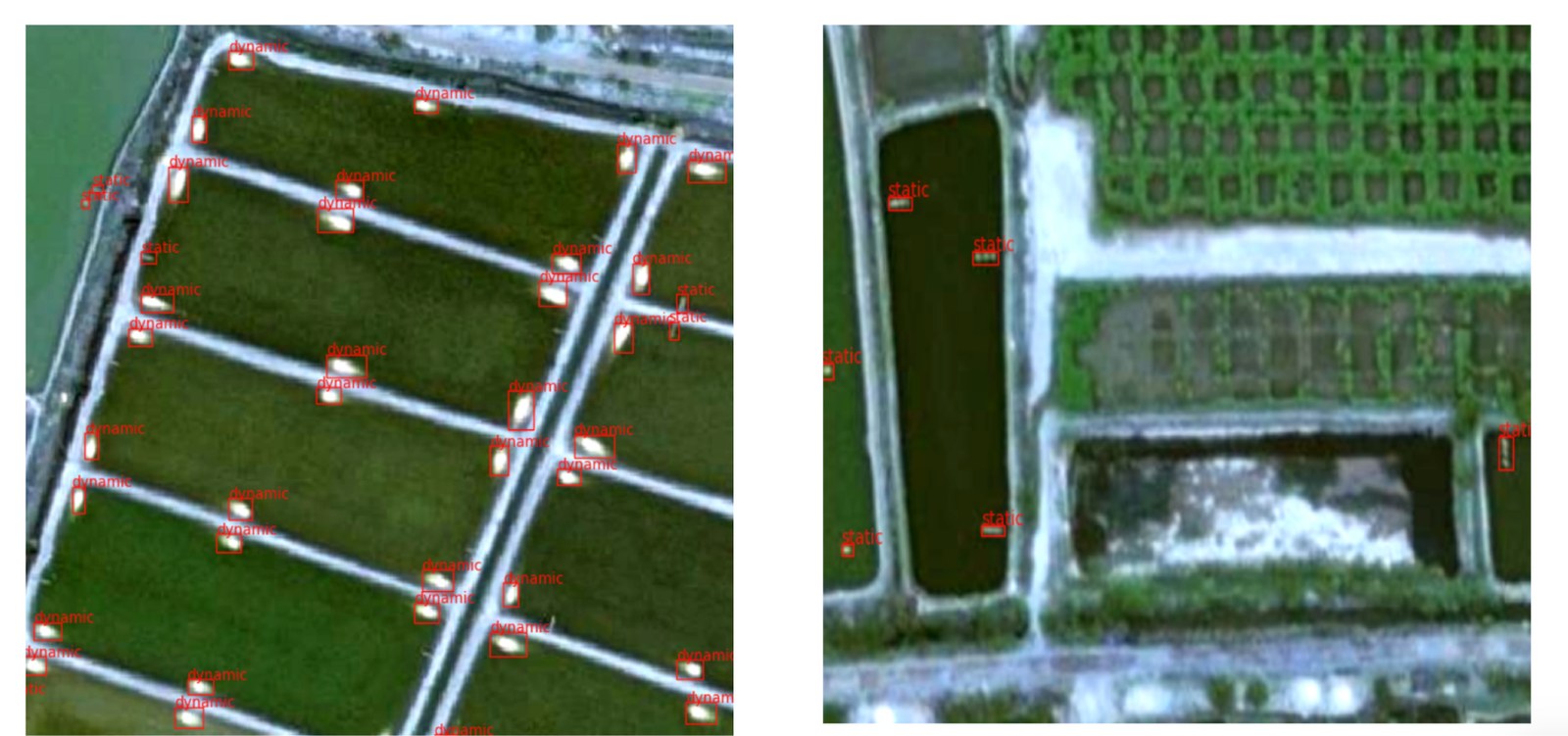

Model predictions showing detected aerators with on and off states Second set of model predictions across a pond cluster
Fig. 02Sample model predictions — individual aerators localised and labelled with running state.

Results

  • 78% mAP on combined detection and on/off state classification.
  • Individual aerators resolved at a scale where they occupy only a handful of pixels.
